Durable epoxy FRP fiberglass insulation rod

  • Durable epoxy FRP fiberglass insulation rod
  • Durable epoxy FRP fiberglass insulation rod
  • Durable epoxy FRP fiberglass insulation rod
  • Durable epoxy FRP fiberglass insulation rod

Durable epoxy FRP fiberglass insulation rod

    Unit Price: 1~5 USD
    Min. Order: 100 piece
    Packaging: packed in cartons for Durable Epoxy Fiberglass Products FRP Fiberglass Insulation Rod
    Supply Ability: 1000 Piece/Pieces per Day Durable Epoxy Fiberglass Products FRP Fiberglass Insulation Rod
    Port: Shanghai

Product Description

Durable Epoxy Fiberglass Products FRP Fiberglass Insulation Rod




Our main products are as follows:
1.10kv -750kv silicone rubber insulator
2.Diam.5-180mm Insulator core rod(Epoxy Resin rod)
3.Many kinds of insulator fittings such as ball,socket,Tongue,Clevis,Flange and so on.
4.Silicone rubber

our website :

Product Description
Diameter kg/m Diameter kg/m Diameter kg/m Diameter kg/m
2 0.007 18 0.55 38 2.5 65 7.3
4 0.0276 19 0.62 40 2.8 70 8.5
5 0.043 20 0.69 42 3.05 75 9.8
6 0.062 22 0.84 44 3.35 78 10.51
8 0.11 24 0.98 45 3.5 80 11.1
9 0.14 25 1.08 46 3.6 90 14
10 0.17 26 1.17 48 3.98 100* 17.3
12 0.25 28 1.36 50 4.32 110* 21
14 0.34 30 1.6 52 4.7 120* 24.9
15 0.39 31 1.66 53 4.9 130* 29.2
16 0.45 32 1.8 55 5.3 140* 33.9
17 0.5 34 2 60 6.2 150* 38.9
17.48 0.53 35 2.04 63 6.9 160* 44.3
17.8 0.54 36 2.24 63.5 7 170* 49.8

Note:The marking * listed in the specification in the table1-2 should be produced after signing the contract and MOQ should not be less than 1500m.

If you can’t find the suitable specification in the form. Please inform us.

We can manufacture acording to your request.

Diameter
mm
1-39 40-55 60-100 above100
deviation
mm
±0.05 +0.1
-0.05
±0.1 ±0.2


Epoxy Insulating Rod

FRP ROD is made through alkali-free and twist-free glass fiber yarn soaking in epoxy compound glue, and passing the vacuum injection, continuous pulling and pressing, and being solidified. They have good electrical performance and mechanical strength.FRP rod are wildly used in freeway; bridge; airport; tunnel; railway station; jetties; underground engineering; sewage treatment plant etc.

Epoxy Insulating RodEpoxy Insulating Rod


Epoxy Insulating Rod

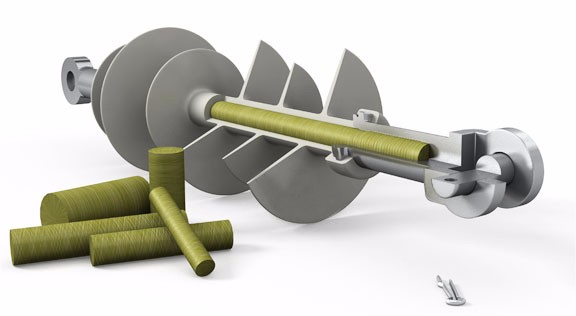

1. Silicon rubber, composite polymer

2. Glass-fiber reinforced epoxy resin rod

3. Hot-dip galvanized steel

Epoxy Insulating Rod


Epoxy Insulating Rod

1.No flaw,crack in the surface and interior, each bar color uniform(green or light yellow).

2.Can withstand the sawing, milling, planning, drilling, lathe and Other mechanical processing.

3.Internal thread can be tapping with screw tap,external thread can be polished,but not allowed to bear overload.

4.It has good damping, creep resistance, fatigue resistance, fracture resistance, high temperature resistance, stress corrosion resistance etc.

Application

Epoxy Insulating RodEpoxy Insulating Rod

The product quality we manufacture for our clients meets IEC 61109,DL/T 810,GB/T 13096-1,GB/T 775.3,JB/T 5892-91 and other related technical requirements .The main technical parameter of epoxy fiberglass core for high voltage line composite insulator

Durable Epoxy Fiberglass Products FRP Fiberglass Insulation Rod

Epoxy fiberglass core is widely used in composite suspension long rod insulator, composite post insulator, compositecross-arm insulator, composite drop switch insulator, disconnector, wind deflection of composite insulator, spacer composite insulator, composite insulator for electric railway overhead contact line and other composite insulator industry.

Company Information

Epoxy Insulating Rod

ass Products FRP Fiberglass Insulation Rod

TAIZHOU HUADONG INSULATED MATERIAL CO.,LTD

  • 1
  • 2
  • 3
  • 4



Taizhou HuaDong Insulated Material Co.,Ltd (FORMER Yangzhou Dajieshi FRP products Co.,Ltd)which was found in October in 1994.


Our company is mainly engaged in the production of FRP ROD,profiles , related terminal parts and accessories products.The terminal and accessories products such as :various types of composite insulators,silicone rubber,insulator fittings , line fittings and so on.The epoxy fiberglass core we produce as intermediate connector and insulating parts is widely used in all the fields and many kinds of composite insulators production.The profiles and composite insulator are widely used in electric power,electronics, electric railway, construction, automotive and environmental protection field.THIM products are widely sales in North and South America,Africa,Asia ,Europe etc such as USA,Kenya,Korea,India,Vietnam,Iran,Russia,Germany,Romania and Other countries and vast areas in our country.THIM is becoming a well-known supplier for insulation products field in the global.


We have a strict quality assurance system,first-class production equipment and inspection instrument,and multiple technical talented persons.


The quality of our products accords with IEC,ISO,ASTM ,ANSI,GB/T,Q/GDW,JB/T,DL etc International standard and National Electric Power Industry related standards.Successively we obtain [Jiangsu province quality assured users, Satisfaction credible enterprise"and[Jiangsu province quality trustworthy AAA brand",[Chinese manufacturer certified supplier" issued by SGS.All of the products are taken the fancy of our clients.


We have already had certain scale through more than 20 years`unremitting efforts.Developping till now,factory area covers 25000 square meters,building area is more than 15200 square meters.We imported full-automatic pultrusion equipment from world-class America CPE company and composite insulator production equipments. Epoxy fiberglass core,complete sets of silicone rubber composite insulator production assembling have a set of unique quality management system.

As in the more and more fierce marketable competition,we will play the waves in the teeth of the storm.Gathering advanced technology,making high- quality power products is our idea,the pursuit of customer satisfaction is our aim,the pursuit of the leading peer is our goal.We sincerely hope to get the care and support from our new and old friends at home and abroad.For sustainable development of insulated material industry to create the future, and make more progress together.


We sincerely welcome you and give us kind guidance.
